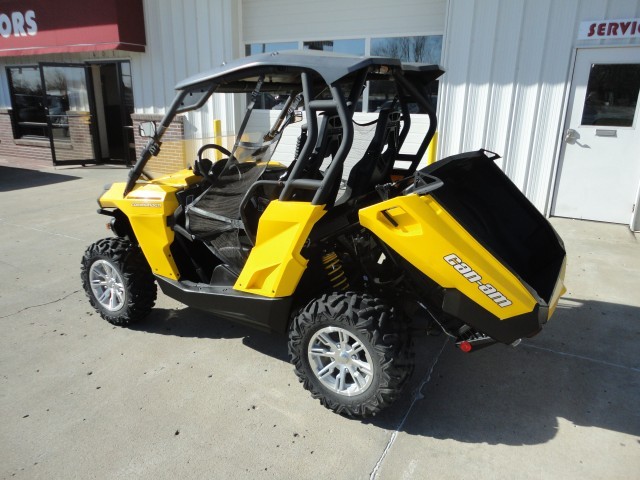

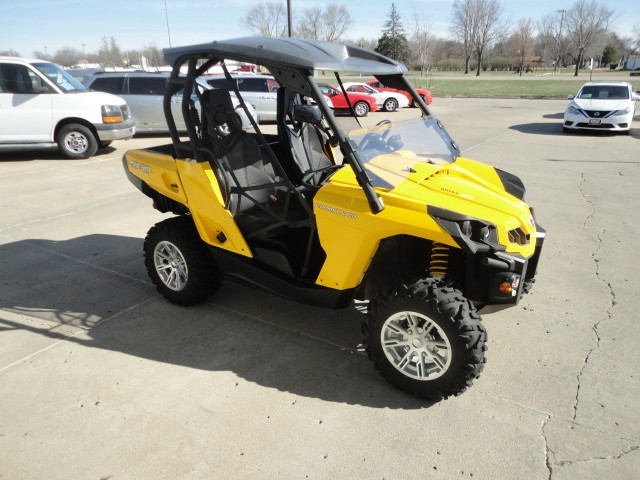

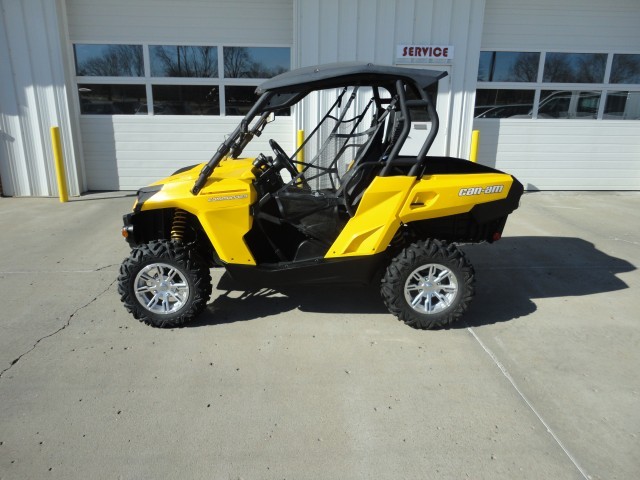

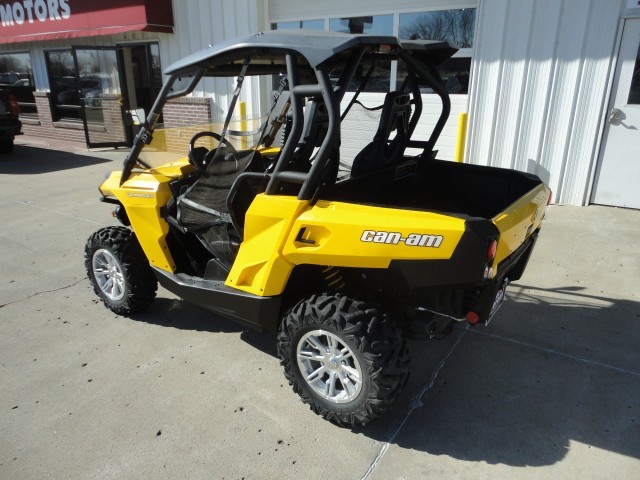

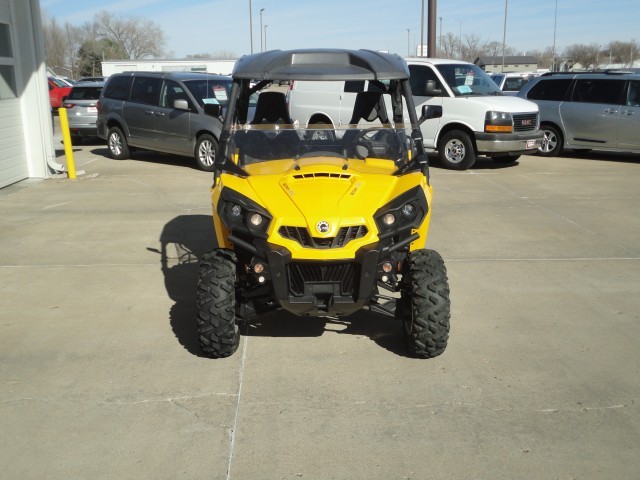

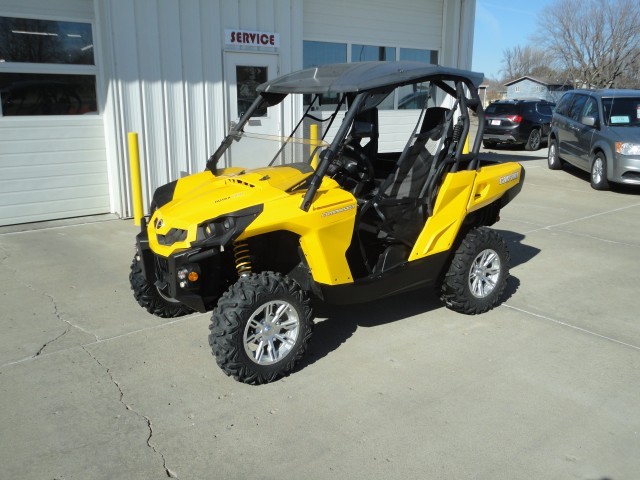

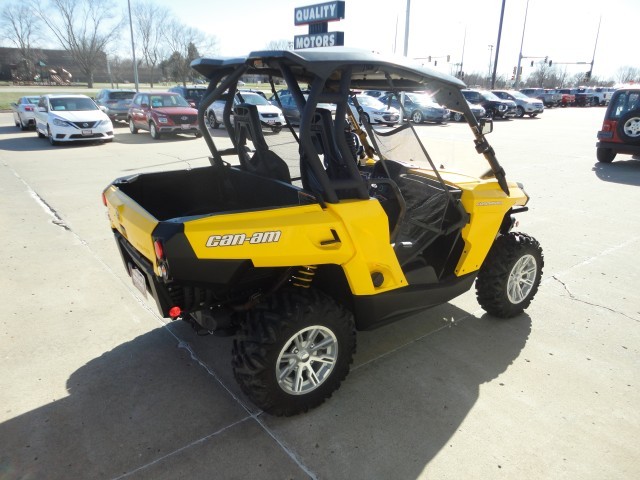

Vehicle Description
The 2013 Can-Am Commander 800R is a sport-utility UTV featuring a 71-horsepower 799.9cc Rotax V-twin engine with electronic fuel injection (EFI) and CVT transmission. Key specs include selectable 4WD with Visco-Lok differential, 11-inch ground clearance, and a 10-gallon fuel tank.
Engine and Drivetrain
Engine: 799.9cc, liquid-cooled, 4-stroke V-twin, SOHC, 8-valve
Horsepower: 71 HP
Fuel System: Intelligent Throttle Control (iTC™) with EFI and 54mm throttle body

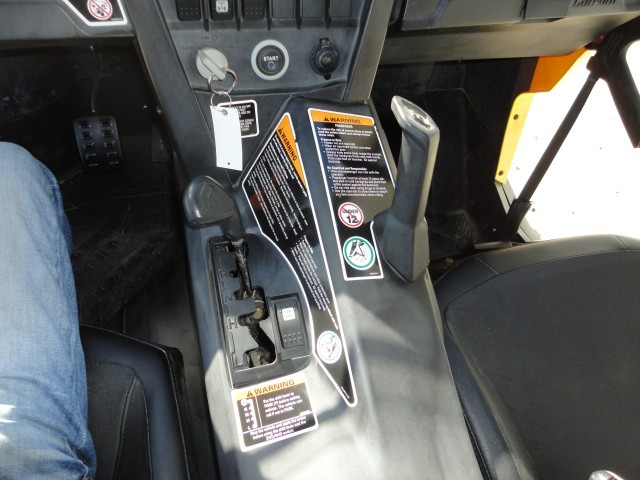

Transmission: CVT, P-R-N-H-L
Drivetrain: Selectable 2W/4W shaft drive with Visco-Lok front differential
Magneto: 625-watt
Suspension, Brakes, and Steering
Front Suspension: Double A-arm with dive-control geometry and 5-way preload-adjustable shocks; 10-in (254 mm) travel
Rear Suspension: Torsional Trailing arm Independent (TTI) with external sway bar and 5-way preload-adjustable shocks; 10-in (254 mm) travel
Brakes: Dual 214 mm ventilated disc brakes with hydraulic twin-piston calipers front and rear
Power Steering: Available on DPS (Dynamic Power Steering) models
Dimensions and Capacities
Length/Width/Height: 118.3 x 58.6 x 72 inches
Wheelbase: 75.8 inches
Ground Clearance: 11 inches
Dry Weight: 1,287 lbs (584 kg)
Fuel Capacity: 10 gallons (37.9 L)
Cargo Box Capacity: 600 lbs (272 kg) total (400 lb upper, 200 lb lower)
Towing Capacity: 1,500 lbs (680 kg)
Tires and Features

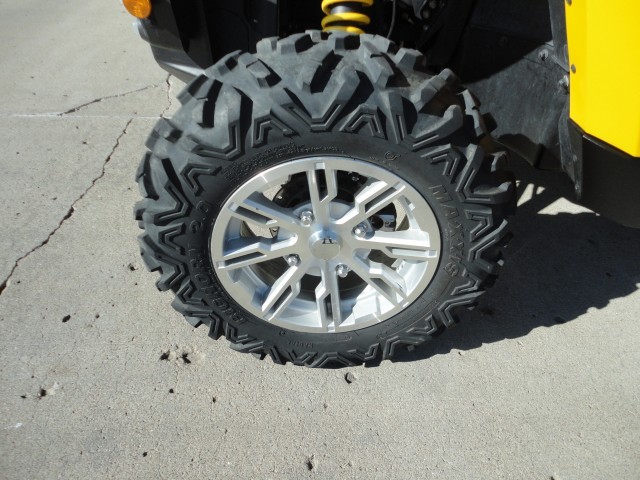

Tires (Front/Rear): 27 x 9-12 / 27 x 11-12 Carlisle Black Rock radial tires
Wheels: 12-inch cast-aluminum (XT models use painted steel or aluminum)
Lighting: 240-watt projectors
Safety: Digitally Encoded Security System (D.E.S.S.
